Forecarts / PTO Carts

2011ForecartPTOprices

The Pioneer Forecart

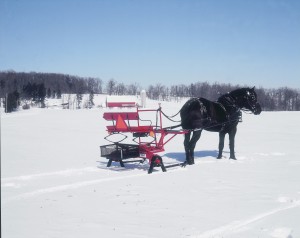

Draft Cart w/ Runners

Proven through years of on-the-farm performance, our standard Pioneer forecart provides dependable service on the road and in the field. Quality materials and workmanship are combined with a clean, well-balanced design for true value and economy. Originally designed for horse farmers, this forecart has evolved into an essential tool for all horse and mule owners. Whether you horse-farm, breed, train, or just want to exercise your

horses, mules, or ponies, the Pioneer forecart will suit your needs.

Features

• Non-Slip expanded metal floorboards

• Extra-wide rear drawbar

• Adjustable hitch for 2 to 4 horse hitches

• Heavy-duty reinforced spindles

• Tapered roller bearing wheel hubs

Tongue Options

Available in ash hardwood or steel

construction. Three position mounting

for special hitches. Length from hitch pin

to neckyoke:

Pony = 85”,

Haflinger = 102”,

Draft = 118”

Brake Options:

Mechanical Brakes are band type with

replaceable lining. Foot pedal operated

with lock.

Hydraulic Brakes are 10” trailer type

and foot pedal operated with lock valve.

All brakes are factory installed, tested

and adjusted.

Shaft Options:

For single horse driving. Our shafts

feature all steel construction for safety

and durability. Easily switch from tongue

to shafts using only two bolts.

Length from singletree

to front of shaft pipe:

Pony = 60” (19” between pipes at narrowest point)

Cob = 70” (22” between pipes at narrowest point)

Haflinger = 76” (23” between pipes at narrowest point)

Draft = 87” (27” between pipes at narrowest point)

Wheeel Options:

Select the proper wheel for your application.

• Air Tires

• Steel Wheels

• Bolt on sled runners.

New Item New Implement Tire now available

Other Options Include : LED Lights, Implement Seat, Bench Seat, Cup Holder. Whip Socket, Cargo Tray, Tool Box, Reese Hitch, Fenders, Sun Shade and Custions.

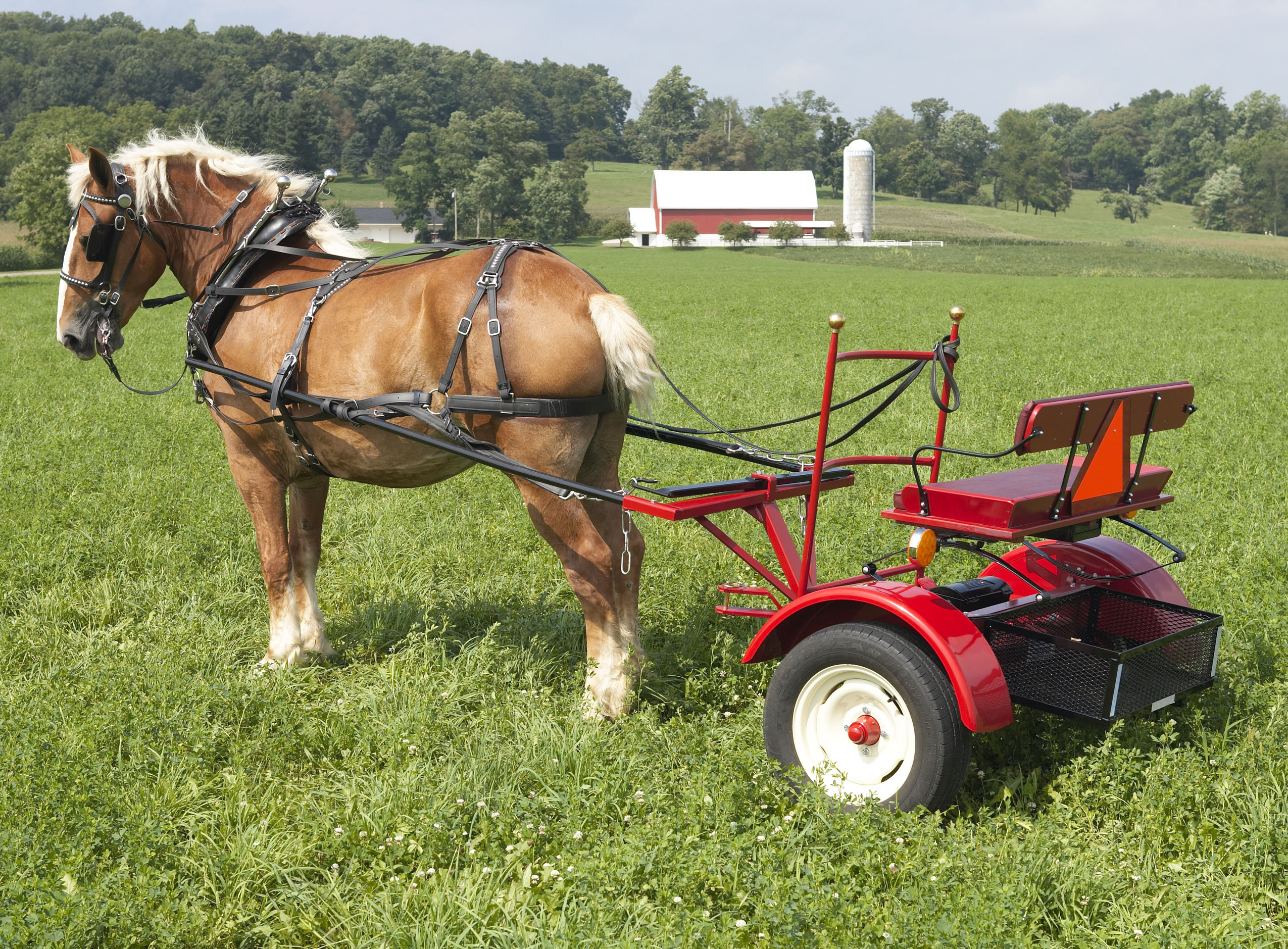

The Pioneer Draft Cart

Draft Forecart w/bench seat and Shafts

Proven by many years of on-the-farm performance, the popular

PIONEER forecart offers dependable trouble-free service on the road

and in the field. Quality materials and workmanship throughout,

with a simple, well-balanced design means true value

and economy

Features:

• Standard cart has 4-bolt wheel hubs for general farm work

• Heavy duty cart has heavier spindles and 6-bolt wheel hubs

(Recommended when using steel wheels)

• Overall width (outside of tires) 64”

• 15” rims mounted with good used tires or new implement tires

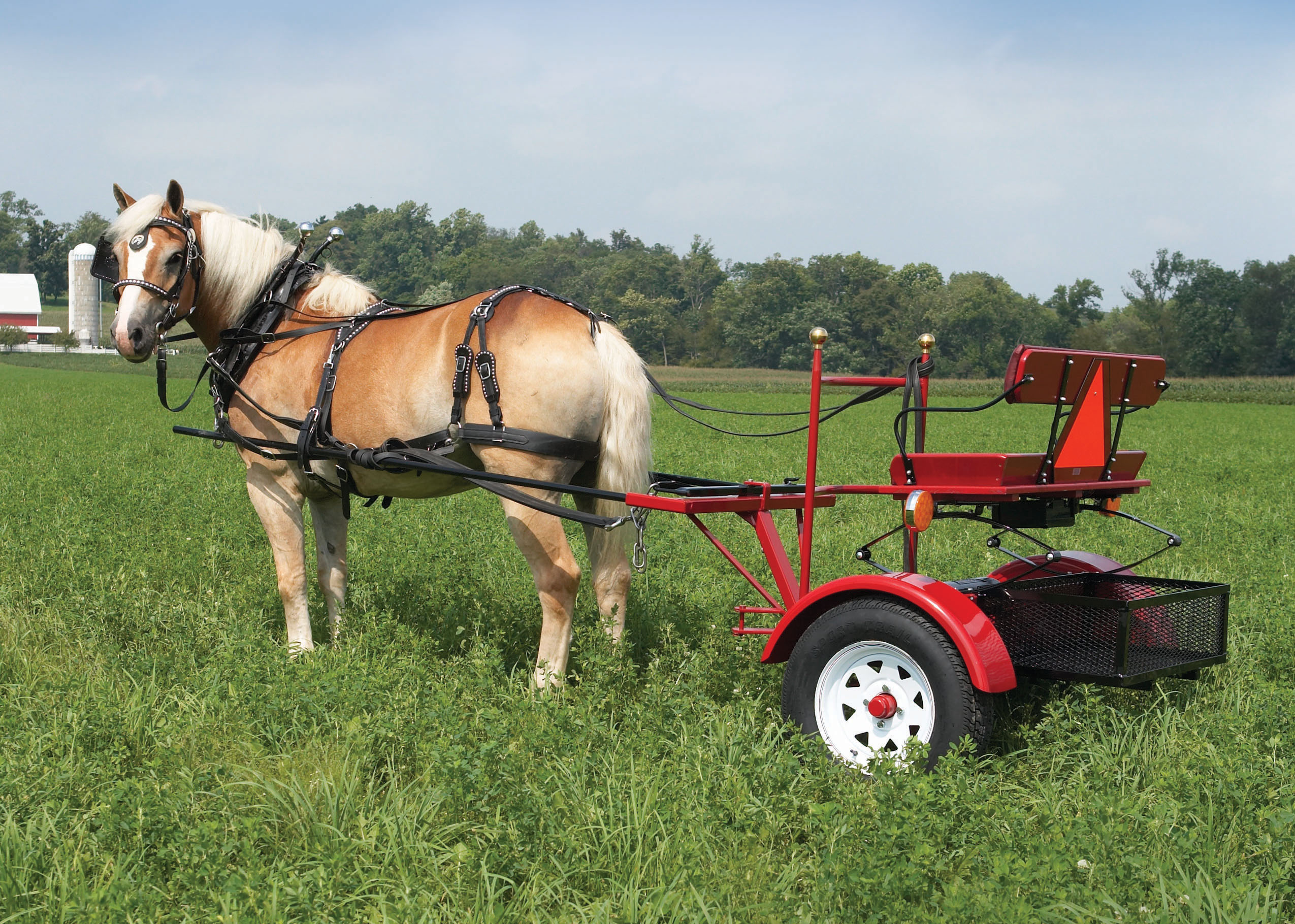

The Pioneer Hafflinger Cart

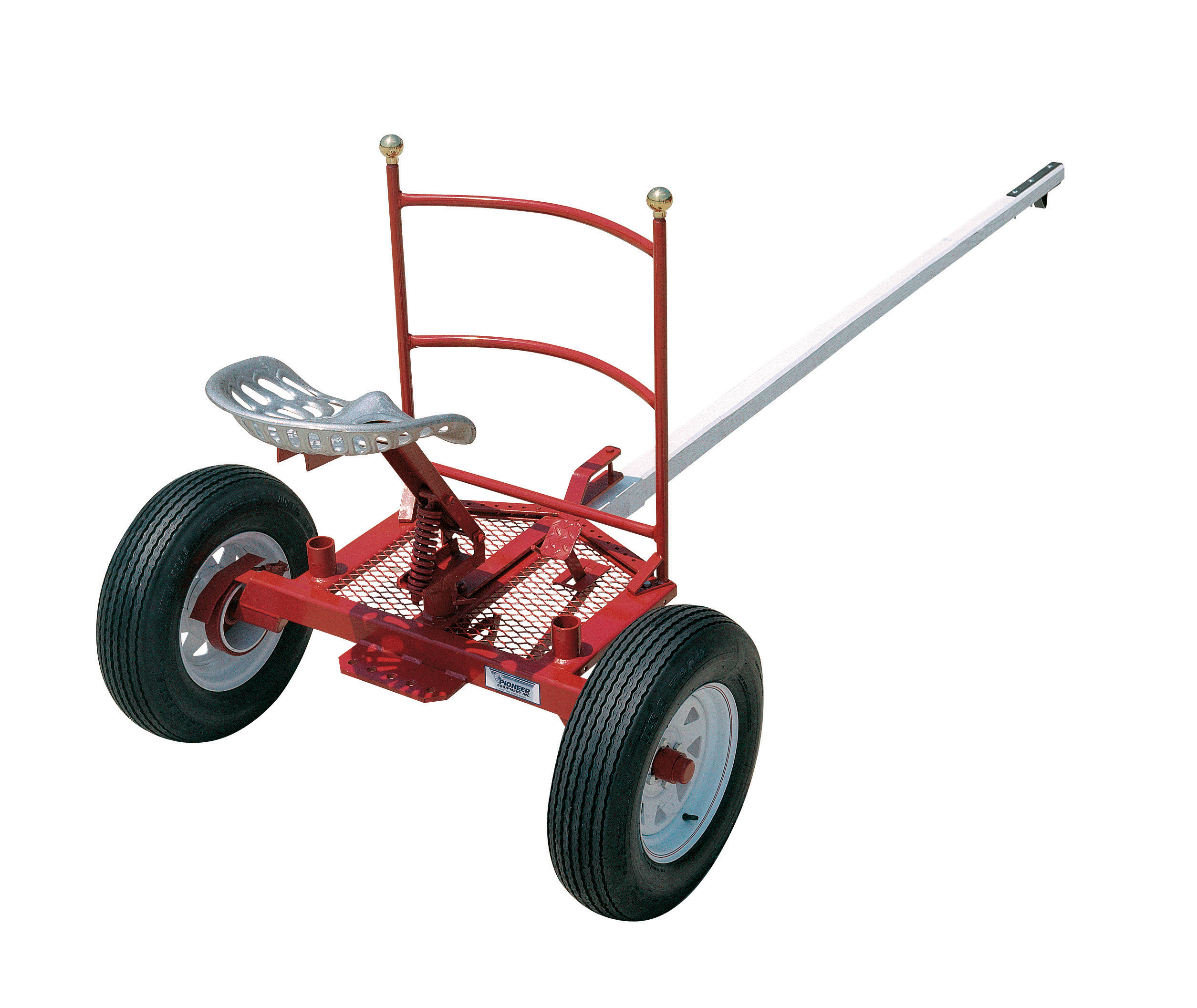

Hafflinger Cart w/Tongue

Made especially for the smaller draft breeds and lighter breeds such as Standardbreds and

Quarter Horses. This forecart has the same features as our larger forecarts, and with a full range

of options and accessories you can easily order one to fit your application.

Overall width (outside of tires) 53-1/2

The Pioneer Pony Cart

Hafflinger Cart w/Basket Bench



This down-sized version of our standard Pioneer forecart is ideal for

ponys or small horses. Outfitted with the same features of our larger

forecarts, you can customize your unit with additional options

and accessories.

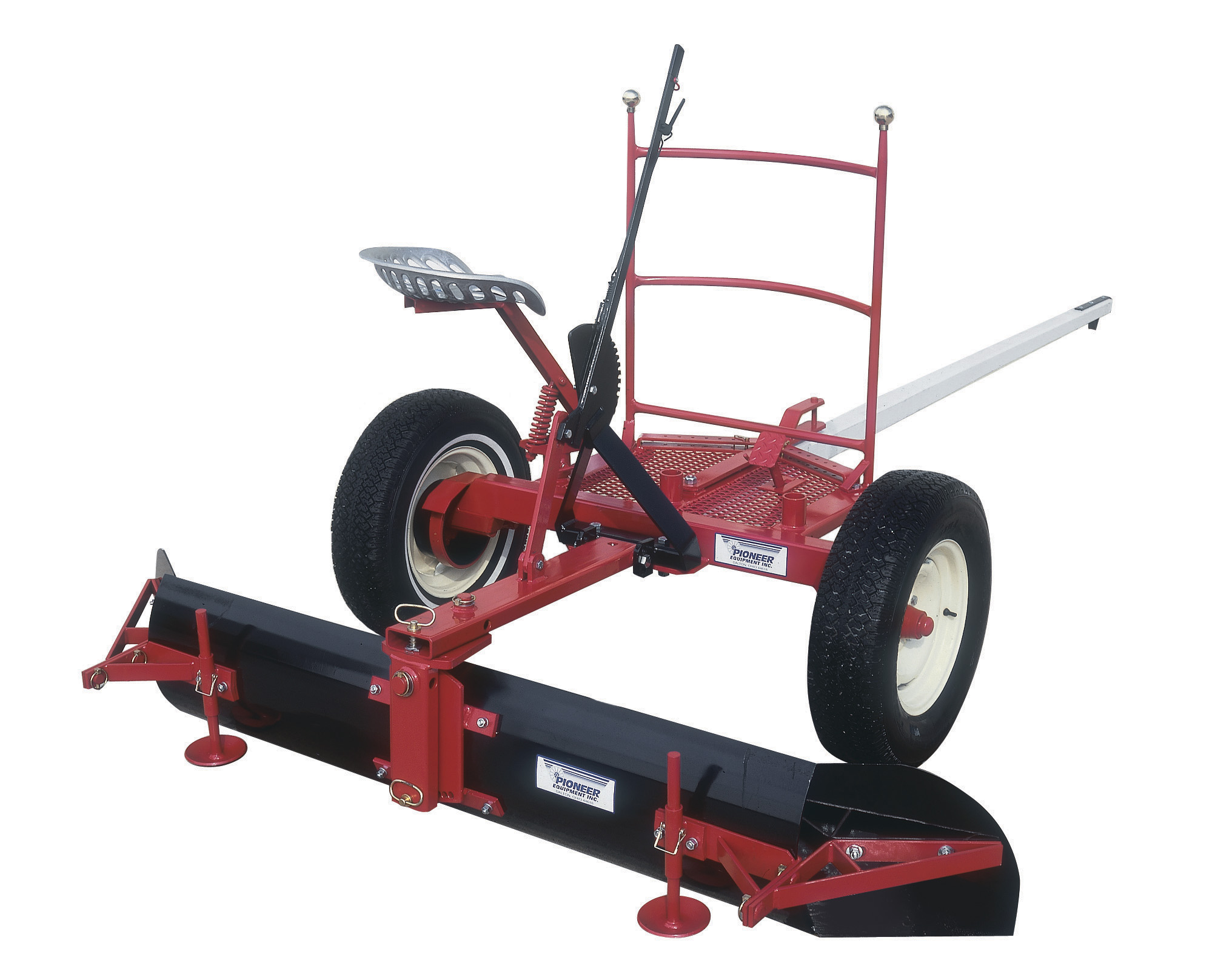

The Pioneer Blade Attachment

Draft Cart w/blade

Put your Pioneer forecart to work with this

durable blade attachment. Use the blade for

scraping barnyards, grading driveways or leveling

dirt. For plowing snow, we recommend using

the optional blade wings and skid shoes.

Conveniently mounts to any Pioneer draft

forecart with just two bolts. A well-balanced

design and convenient adjustments make

the blade easy to operate

Features:

• Blade widths of 6’ or 7’

• Adjustable lever depth control

• Floating position for leveling large areas

• Angle and tilt adjust to right or left

• Convenient spring pin adjustment

• Reversible blade doubles blade life

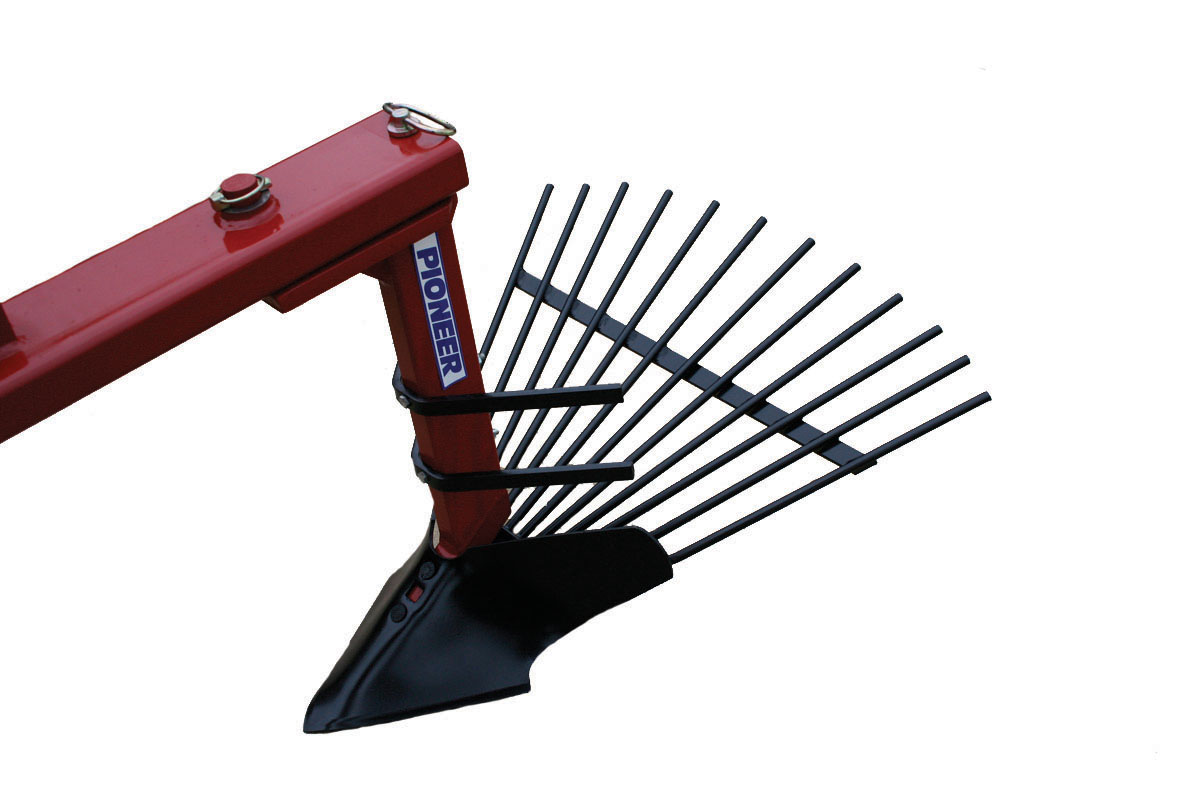

The Pioneer Potatoe Ploq Attachment:

Potato Plow attachment

This unique add-on features a heat treated furrower that digs potatoes

and rolls them out for easy pickup without damage. Available as a

complete unit or as an attachment for the Pioneer blade

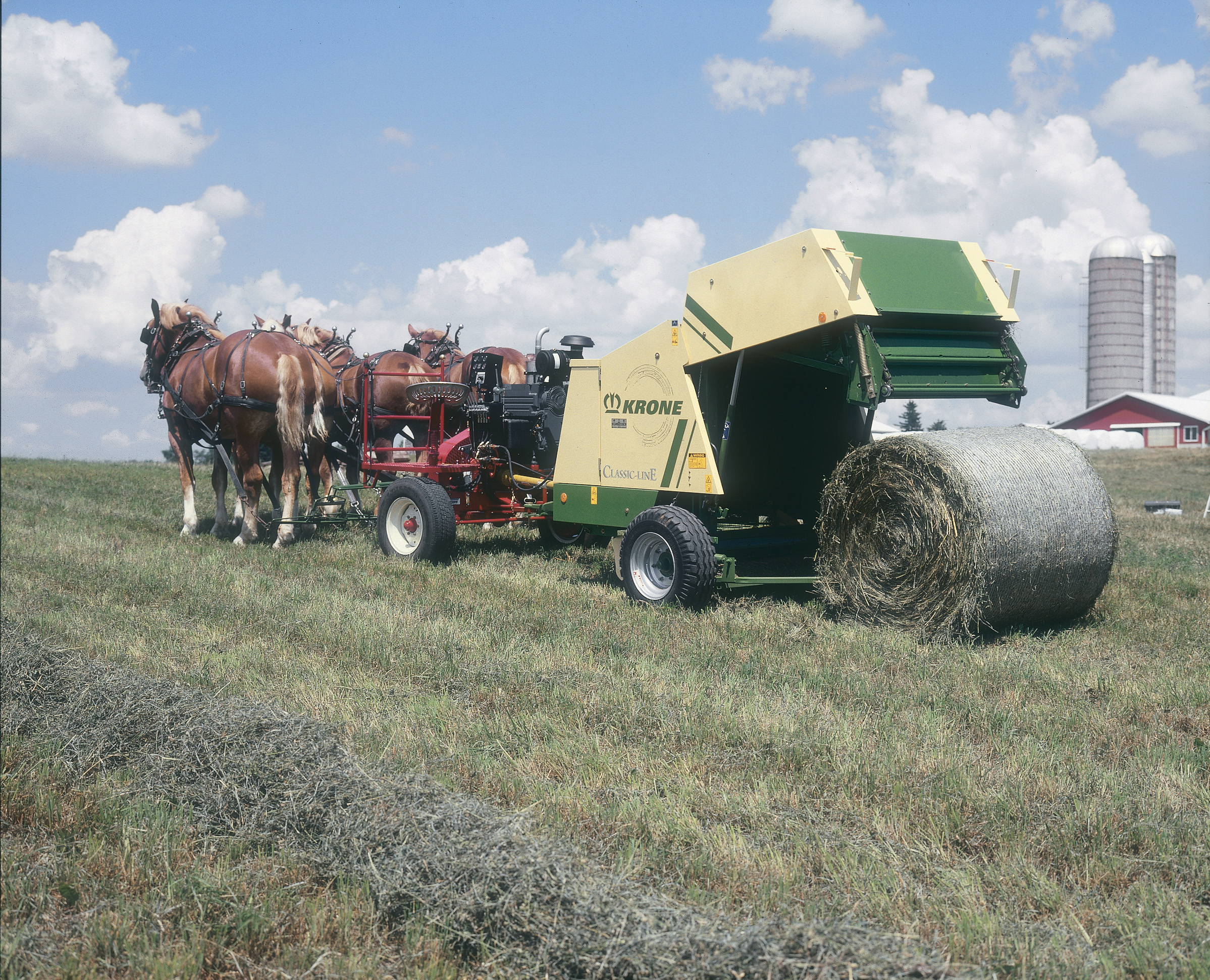

The Pioneer Liberty PTO Cart

LD75 pto cart

Motorized cart helps you do more work in less time

In a class of its own, the Pioneer Liberty PTO cart features a quiet running gas or diesel

engine to help improve daily productivity on today’s modern horse-powered farms.

Choose the engine and horsepower to fit your application, from a range of 20 HP to

75 HP. Field ready and loaded with features, the PTO cart is a proven performer.

This cart is the result of years of research and extensive on-the-farm testing. It is ideal

for use with rotary mowers, haybines, hayrakes, tedders, square and round hay balers,

manure spreaders, corn pickers, picker/shellers, silage choppers and other critical

farm equipment.

All Pioneer Liberty PTO carts feature the exclusive adjustable drawbar stabilizer,

which eliminates balance problems associated with a two-wheeled cart. Our design

ends swaying, tongue weight problems and PTO shaft damage on sharp turns. It also

provides better stability when making turns and working on hillsides. This is accomplished by first clamping or welding a pin to the tongue of the implement being pulled. Next, the implement tongue is hitched to the cart drawbar in the usual manner. Then, the cartstabilizer bar is attached to the pin on the implement tongue. Finally, the cart tongue latch is disconnected. Using this method, the cart and implement become one single unit and will operate and turn like an auto-steer wagon.

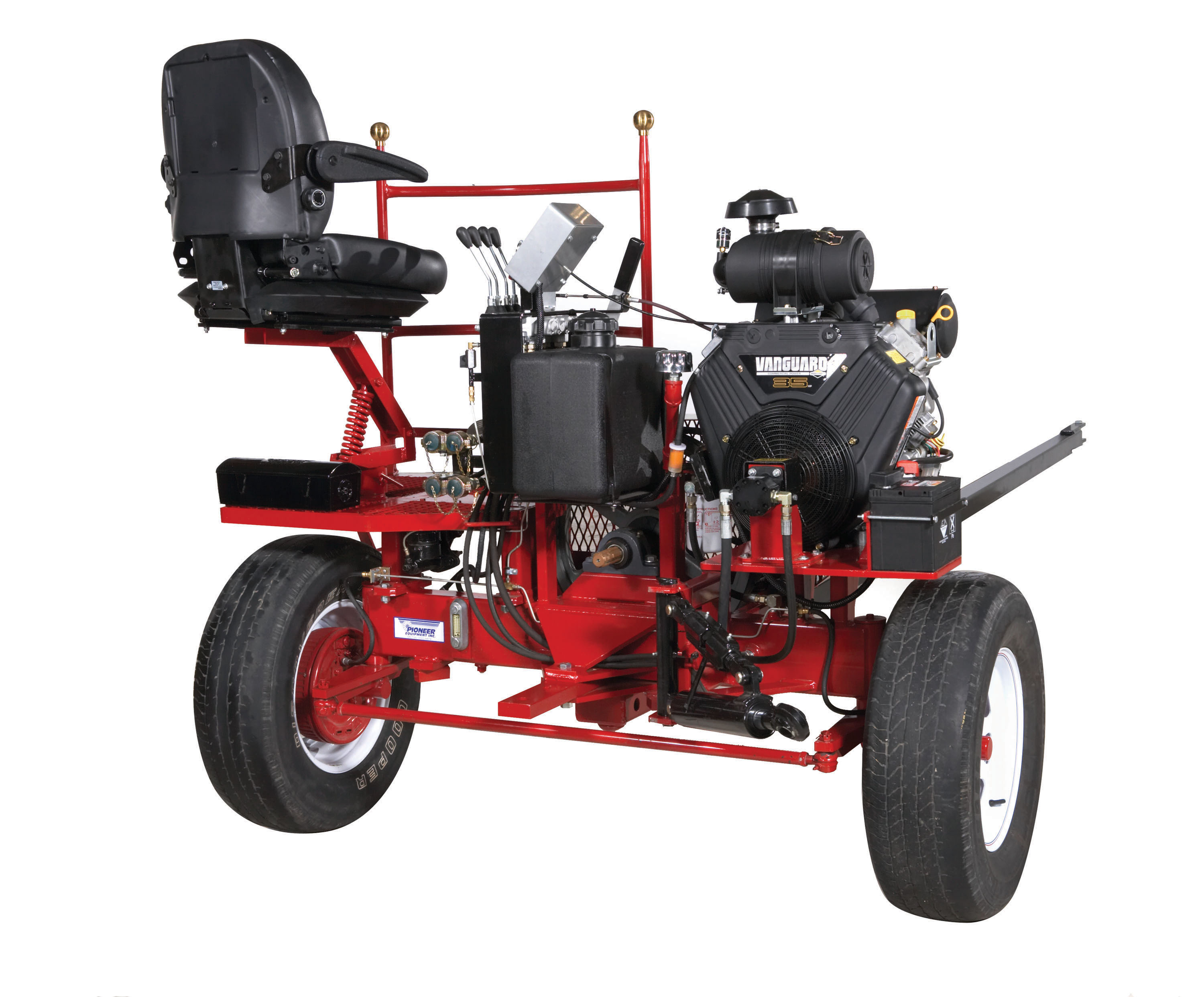

LK35 pto cart



Features:

• Gasoline – 20 HP to 35 HP

• Diesel – 27 HP to 75 HP

• Hydraulic Brakes with lock valve

• Tongue – steel with lift spring

• Hillside Steering – hydraulically operated

• Clutch – hand lever belt tightener

• PTO shaft – 1-3/8 – 6 spline 540 RPM

• Hydraulic Pump – 3 GPM on gas models

8 GPM on diesel models

• Hydraulic Outlets – 4 quick disconnect

• Overall width (outside of tires)

73” gas models

75” diesel models

Now Available the New Pioneer Hybrid PTO Cart

Do more with less — The new Pioneer 45HP Diesel PTO Cart. Featuring a

lighter frame this machine is large enough to run a small round baler and

still light enough to use for applications like tedding and raking.

Contact us for more details.
