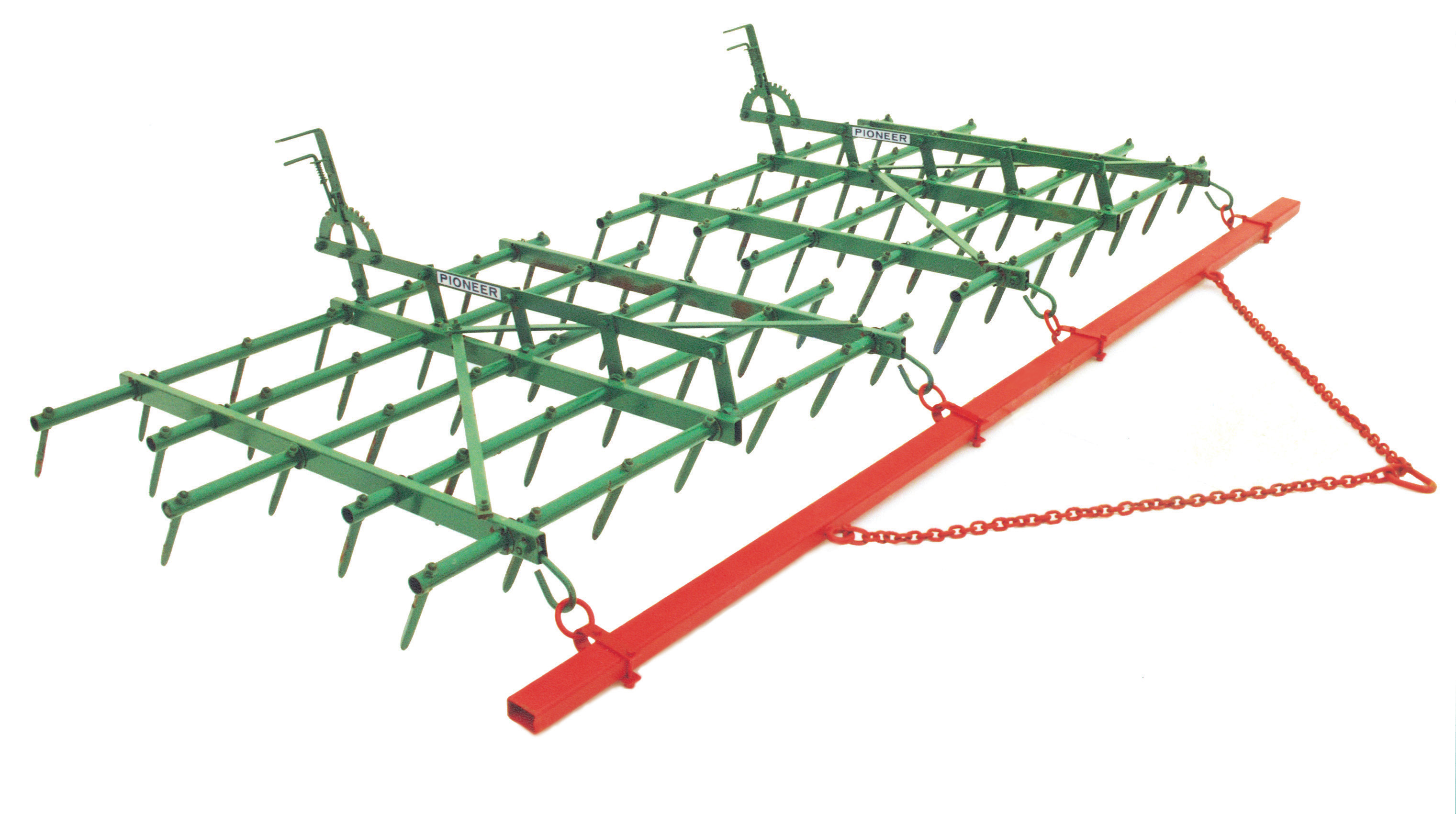

Pioneers Spike Tooth Harrow
Pioneer’s spike tooth harrow is designed for leveling, weeding and seedbed preparation. Pull it with ponies, horses, mules or a tractor. High quality materials and craftsmanship ensure years of performance
Features & Specifications

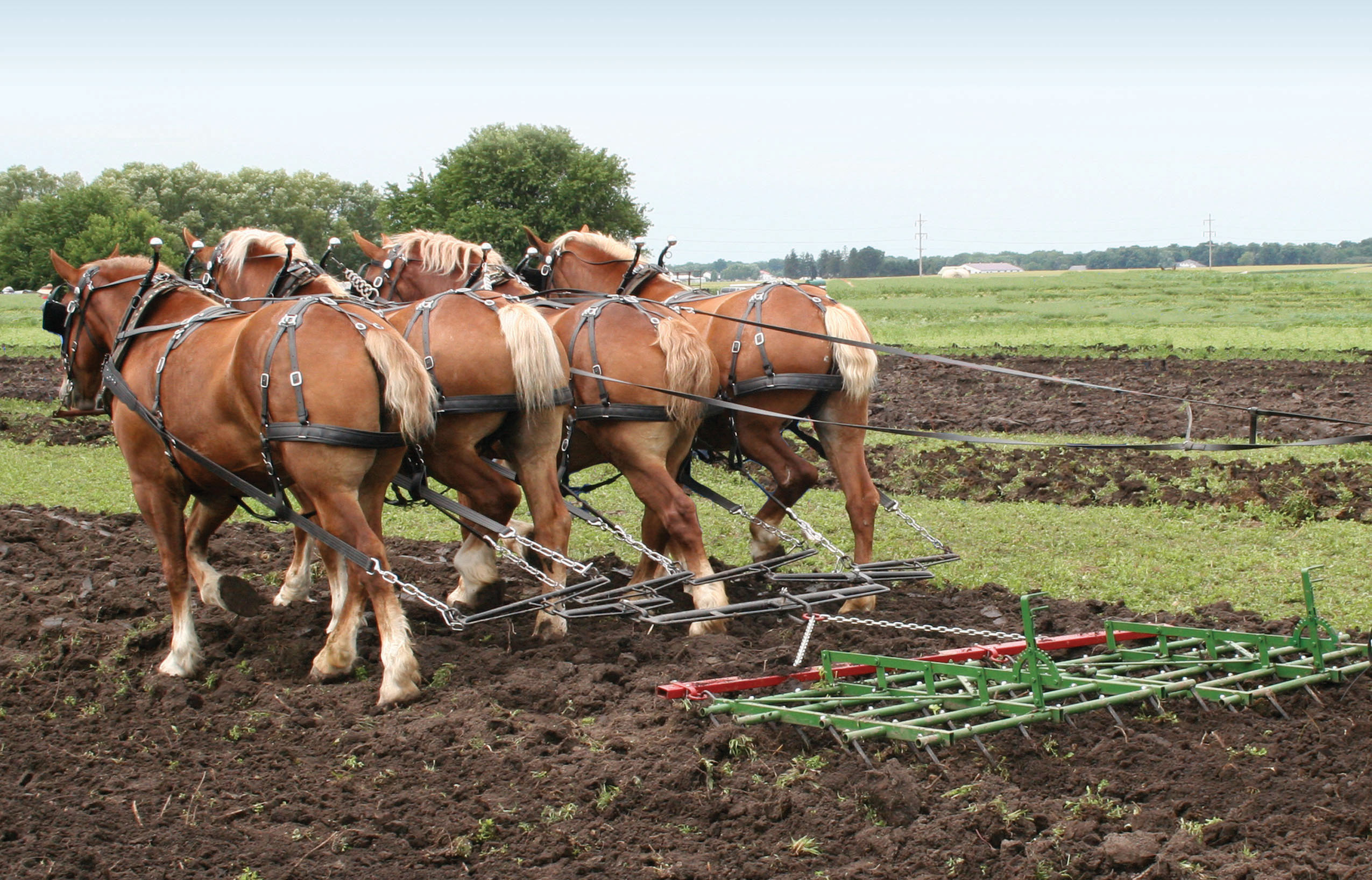

working spike harrow
Sizes: vailable in 5’ and 6’ sections up to 18’ wide
Spike Teeth: Our spikes are diamond shaped, hardened with a reinforced shoulder and stay sharp longer. Plus, we use a lock washer to prevent them from shaking out.
35 teeth per 5’ section, 40 teeth per 6’ section
Open End Construction: Helps prevent clogging, eliminates overriding and allows complete flexibility for each section
Lever Assembly: Easy to use lever to set depth for various conditions
Tubular Frame: Rigid enough to hold the teeth in position, flexible enough o follow uneven terrain
Spike Harrow
Drawbar: have a chain pull to eliminate bent rods. Section clevises are adjustable and prevent unhooking when making turns.
Steel drawbars
Drawhooks: Designed to stay hooked even when trailed over the roughest ground.
The New Pioneer Crumbler
Save time in the field by completing two steps in one pass when you use the new Pioneer Crumbler in conjunction with your Spring Tooth harrow. The 17” rollers will easily crumble the clods as you till the ground. Each roller rotates individually, preventing drag when turning.

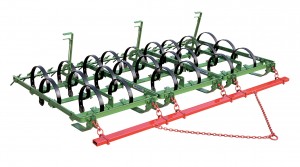

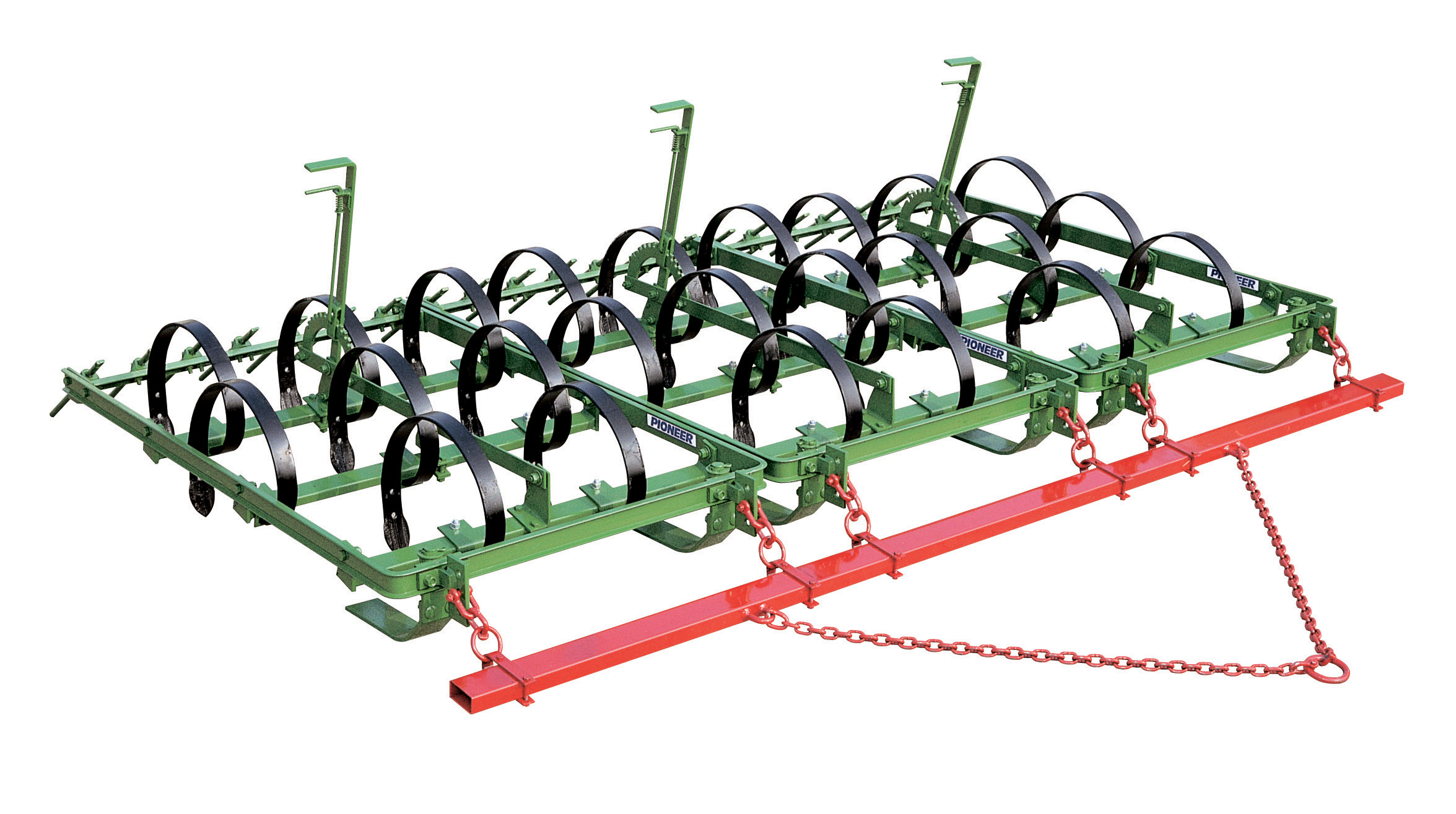

The Spring Tooth Harrow
Ideal for seedbed preparation and weed killing, our spring tooth harrow is built for trouble-free performance and reliability. This ultimate all-purpose tillage tool features swiveling front runner shoes and arear raker bar, which eliminates the need for full length runners and reduces the build up of stalks or weeds. Each section is an individual unit for easy handling and storage. Additional sections can be added by changing to a longer drawbar.
Features & Specifications
- Springtooth Harrow
