Plowing with Walking Plow



 032011PlowPriceLink



The Pioneer Walking Plow

The Pioneer Walking Plow



An economical option for the small farmer or homesteader,our walking plow features a simple yet dependable design for years of trouble-free service and is easy to use in nearlyall soil conditions. Standard equipment includes a sod breaking jointer, fully adjustable depth gauge wheel, convenient swivel hitch clevis,and steel handle slide to eliminate wear on wood handles
.














The Features of the Walking Plow Inclide:




Beam: 2-piece higher strength carbon steel
Hitch: horizontal and vertical adjustment for various hitch sizes
Clevis: forged steel swivel type

 Handles: No. 1 select hardwood

Sizes: 12″, 14″ or 16″ available in RH or LH Bottoms: Oliver-Raydex type – optional 14″ John Deere

Gauge Wheel, Handle Slide, Jointer and Clamp: included
Coverboard: optional – not included

Length: 98″ overall

Width: 36″ overall

Height: 36″ overall

The Pioneer Footlift Sulky Plow

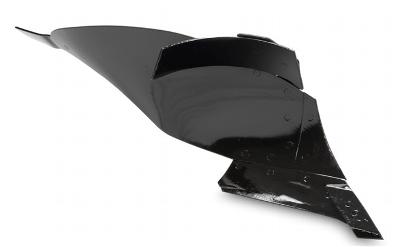

Footlift Sulky w/ KV bottom






The newest concept in single bottom horse drawn plows

from the plows of a bygone era. It is safe and easy to operate with a hands-free spring
assist footlift and lowering pedal. Both the landslide and furrow wheels are connected
to the steering framework and coupled to the tongue so that when the horses turn,
so does the plow.


This sulky plow combines modern materials with field-proven features borrowed



smoother travel
• Spring detent furrow lever for better control
• Raised framework for better clearance
• New furrow axle to eliminate
caster affect
A unique feature on the Pioneer Sulky Plow is a safety bolt that shears if the bottom hits a solid object. This virtually eliminates the possibility of a broken evener, torn harness or damage to the plow.

The Features on the Footlift Sulky Include:

Bottoms: Oliver Raydex type – optional 14″ John Deere
or European type Kverneland
Frame: heavy tubular steel
Beam: 2-piece higher strength carbon steel

Axles: precision machined carbon steel

Wheel Hubs: 4-bolt with tapered roller bearings

Furrow & Rear Wheel: solid web type eliminates trash pickup

Land Wheel: heavy duty spoke type

Tongue: wood with sliding neckyoke

Hitch: horizontal adjustment for 2, 3 or 4 horse teams,

vertical adjustment for any size horse

Steering: tongue steers furrow and rear wheel

for maneuverability and precise control

Footlift: spring assisted, hands-free lowering and raising of plow

Length: 90″ overall

Width: 56″ overall

Height: 48″ minimum

The Pioneer Sulky Plow




Pioneer Sulky Plow



Axles: precision machined carbon steel

Sizes: 12″, 14″ or 16″ available in RH only

Wheel Hubs: 4-bolt with tapered roller bearings
Furrow & Rear Wheel: solid web type eliminates trash pickup

Land Wheel: heavy duty spoke type

Tongue: wood with sliding neckyoke

Hitch: horizontal adjustment for 2, 3 or 4 horse teams,

vertical adjustment for any size horse

Steering: tongue steers furrow and rear wheel

for maneuverability and precise control

Footlift: spring assisted, hands-free lowering and raising of plow

Length: 90″ overall

Width: 56″ overall

Height: 48″ minimum

The Pioneer Sulky Plow

conditions, plowing at a uniform depth at all times. All levers and controls are easily
reached from our large, comfortable and spring-mounted seat. Width and depth
are widely adjustable. It also features beam-to-bottom clearance and a full width
coverboard for excellent trash and cover crop covering. Choose from three sizes
and a range of adjustments and options to get just the right combination you need.

Built for performance and reliability, the Pioneer sulky plow can handle any type of soil



The Features on the Sulky Plow Include:
 or European type Kverneland
Beam: 2-piece higher strength carbon steel
Axles: precision machined carbon steel
Wheel Hubs: 4-bolt with tapered roller bearings
Furrow Wheel: solid web type construction
Land Wheel: heavy duty spoke type

Hitch: horizontal adjustment for 2, 3 or 4 horse

teams, vertical adjustment for any size horse

Length: 80″ overall

Width: 52″ overall

Height: 37″ minimum

The Pioneer Gang Plow







Gang Plow



and rear wheel steering allow precise control on turns, and an elevated operator’s platform provides an unobstructed view. Raising and lowering the plow bottoms in and out of the ground is made easier with a convenient D-handle over-center lever, while a handy foot latch holds them securely in the raised position.





Provides increased production for larger farms Our best-in-class 2-bottom gang plow features conventional steel plow bottoms to ensure continued parts availability. Ample clearances and full width coverboards provide good trash flow and coverage, while the fluted coulters slice through residue for clean furrows. Width and depth of cut are fully adjustable. Furrow



Features of the Pioneer Gang Plow Include:






16″ bottom spacing. In most conditions these new tractor type
Raydex bottoms perform best when cutting slightly wider
than their stated size.



Sizes: 12″ or 14″ available in RH only.Note: The 12″ plow has 14″ bottom spacing and the 14″ plow has



Bottoms: Oliver Raydex type – optional 14″ John Deere
Coulters: slice through residue for cleaner furrows
Tongue: wood with sliding neckyoke
Frame: heavy tubular steel
Beams: 2-piece higher strength carbon steel
Axles: precision machined carbon steel
Wheel Hubs: 4-bolt with tapered roller bearings

Furrow and Rear Wheel: solid web type – eliminates

trash pickup

Land Wheel: heavy duty spoke type

Hitch: ample adjustment for various size hitches

Steering: tongue steers furrow and rear wheel

for precise control

Length: 98″ overall

Width: 66″ overall

Height: 76″ minimum







• New spring location for smooth travel
• New foot pedal to lower bottoms
• Raised framework for better clearance
• New furrow axle to eliminate caster affect

New Improvements Include:





Parts for Oliver/JD/Kverneland Bottoms

• Wider wheel base for better stability
• New lift spring location for
Sizes: 12″, 14″ or 16″ available in RH or LH








Bottoms: Oliver Raydex type – optional 14″ John Deere
or European type Kverneland
