Wagons Sleds Stoneboat

Wagons Sleds Stoneboat Price Link

Pioneer Horse Drawn Wagon Gears

Whether you’re a farmer, hobbyist, or providing commercial wagon

rides, Pioneer can design a complete custom wagon just for you.

Choose from four sizes ranging from ½-ton to 6-ton capacity. Select

the proper gear and wagon bed, then complete the package with

suitable options and accessories.

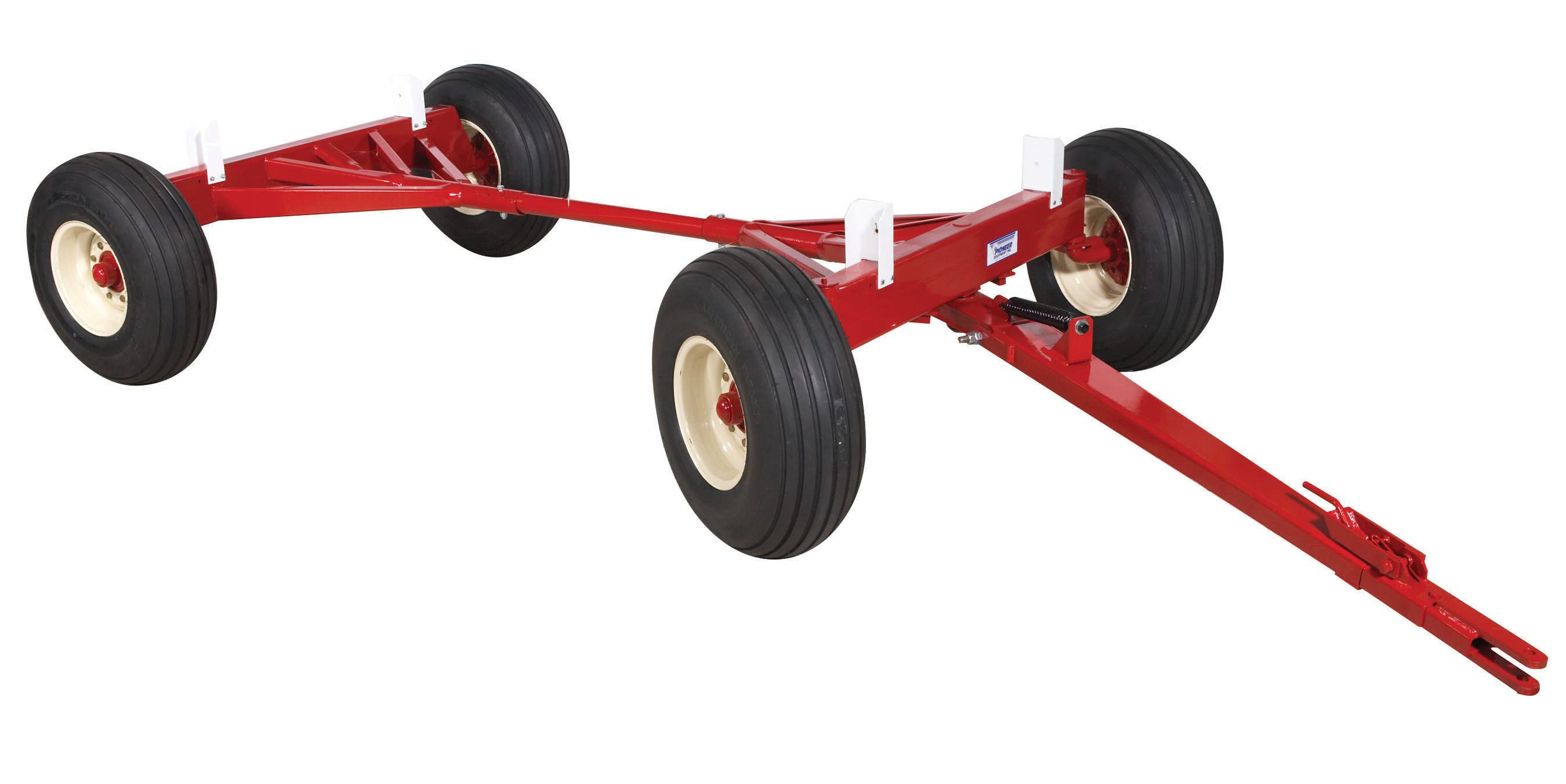

Ten Ton Tractor Gear

Features of our Wagons

• Behind the axle auto-type steering

• Adjustable tie rods

• Short turning and true tracking even at high speeds

• Convenient rear hitch

• Grease fittings at all pivot points

• Heavy duty reinforced spindles

• Tapered roller bearing wheel hubs

• Oscillating coupling pole

Wagon Beds

Choose from our many styles of beds including the traditional

Hay Wagon, Utility, Trailway, Classic, SUV or Coach. Every bed is

constructed from quality dried poplar wood and features

powder-coated steel hardware. Standard bed colors are red,

green, or clear varnish. Custom colors and automotive finish

are available upon request. Accessorize your wagon with a canvas

cover*, cushion seats, LED lights, a whip socket. We even offer

cupholders.

Wheels Available

Select the proper wheel for your application.

• Air Tires

• Steel Wheels

• Wood Wheels*

Or, convert your wagon to a sled

using our bolt on sled runners.

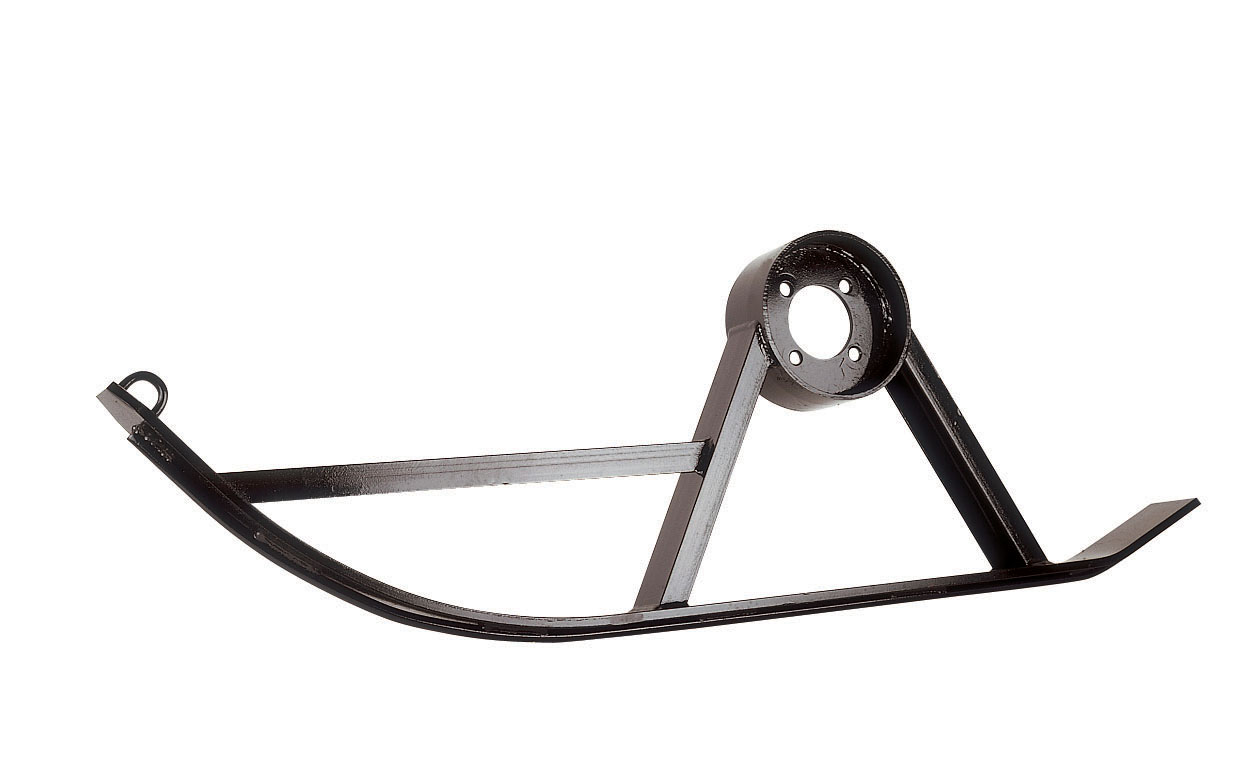

bolt-on sled runner

TURN YOUR WAGON OR CART INTO A SLEIGH

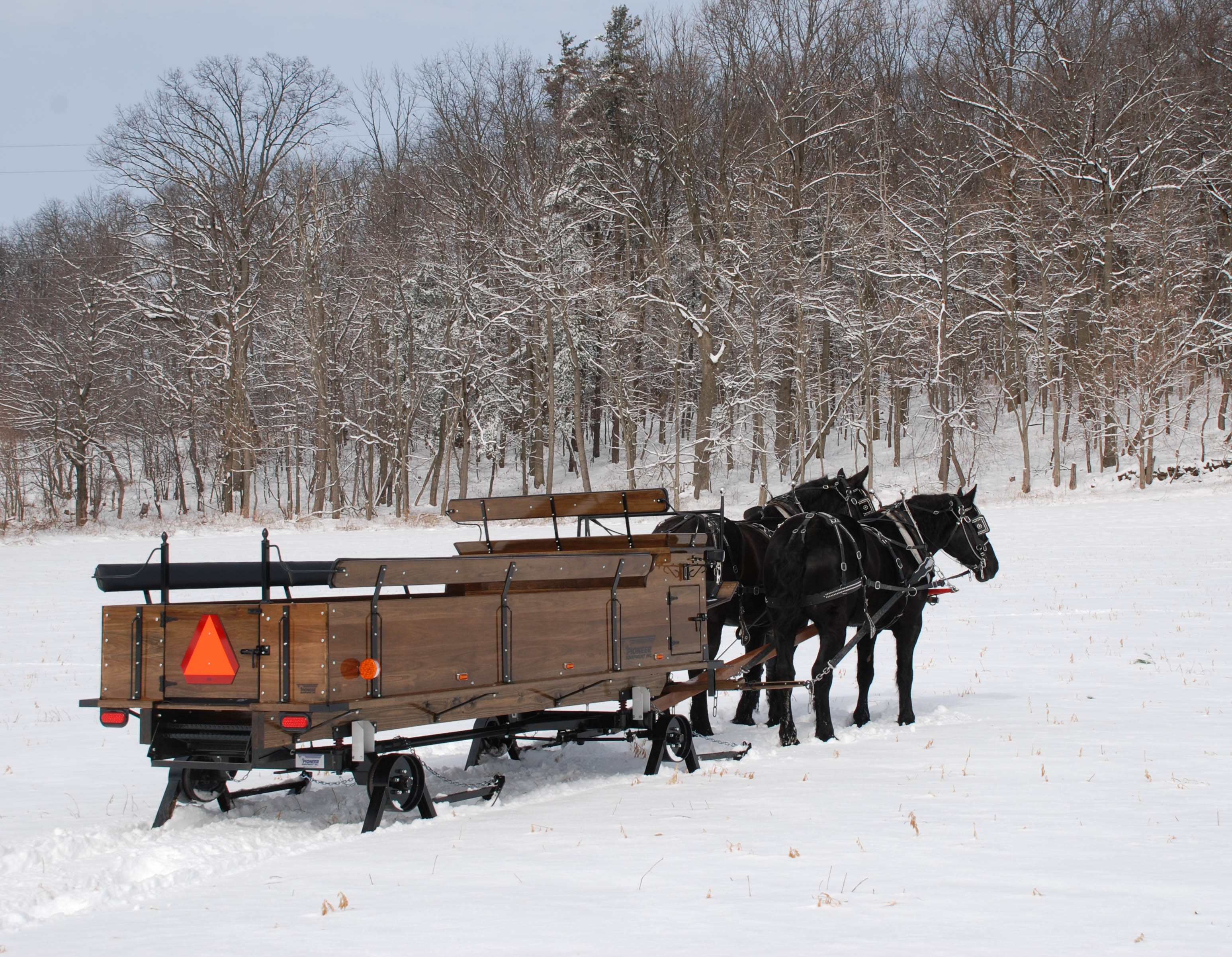

Sled Runners on Wagon

Bolster Springs for 1 Ton gears

Min. Max

Light 500# 1400#

Medium 800# 2000#

Heavy 1600# 4400#

Bolster Springs for 3 and 6 Ton gears

Min. Max

Light 1000# 2800#

Medium 1600# 4000#

Heavy 3200# 8800#

Choose from 4 tongue options including:

• Ash Hardwood

• All Steel Horse

• All Steel Horse/Tractor Combination

• Standard Steel Tractor

Length from hitch pin to neckyoke:

Mini = 73”

Pony = 85”

Haflinger = 102”

Draft = 118”

Shafts

Drive your single horse or pony with a set of shafts.

Our shafts feature all steel construction for safety and durability.

Length from singletree to front of shaft pipe:

Mini = 46” (15” between pipes at narrowest point)

Pony = 60” (19” between pipes at narrowest point)

Cob = 70” (22” between pipes at narrowest point)

Haflinger = 76” (23” between pipes at narrowest point)

Draft = 87” (27” between pipes at narrowest point)

The Pioneer ½ Ton Wagon Gear

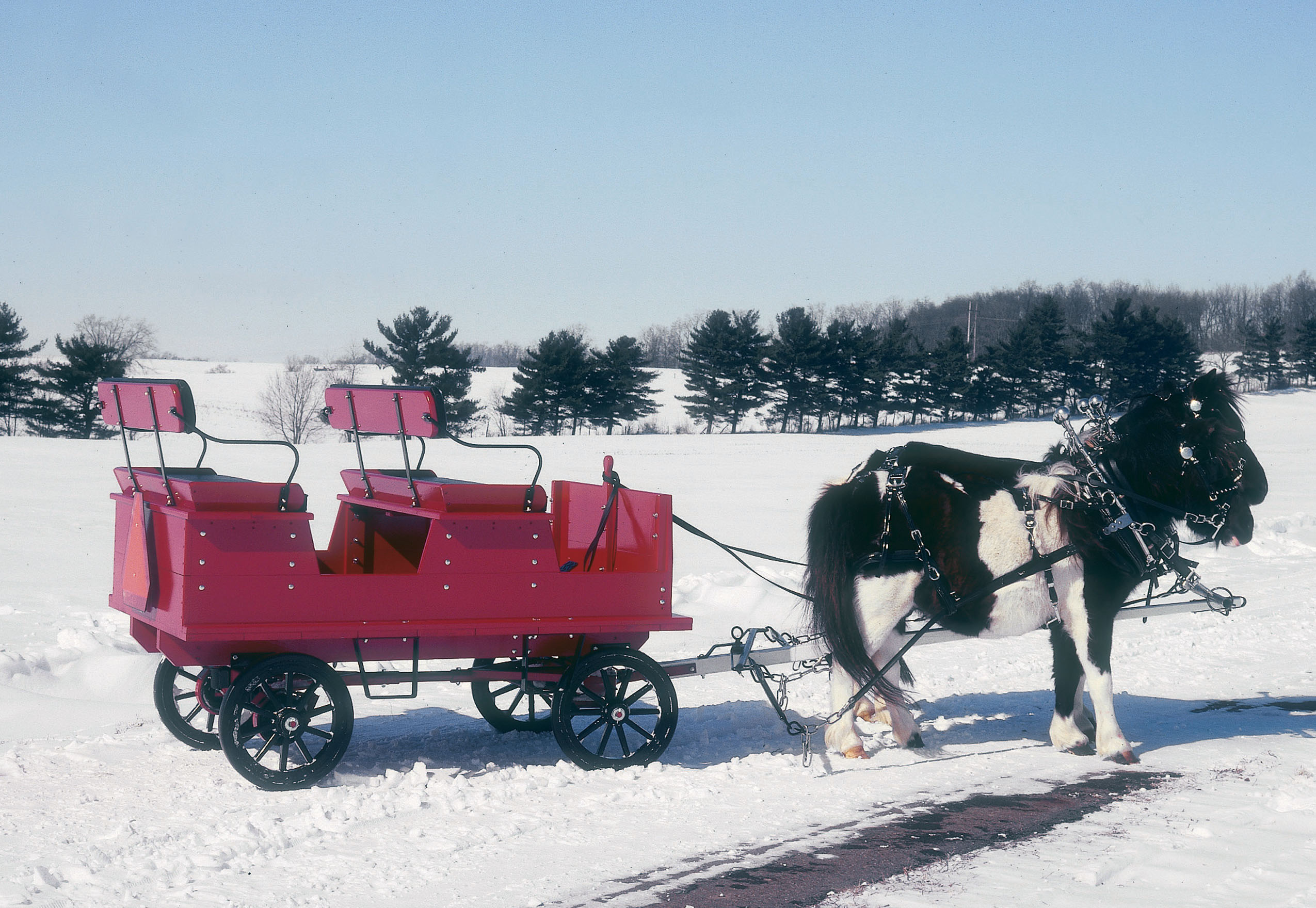

Halft Ton SUV Mini

This compact wagon is designed especially for ponies

and haflingers and is a good choice for young teamsters

or beginners of any age. Useful for many purposes,

like going to town, pleasure driving and trail rides.

Features

• Bed size 40” wide x 70” long

• Available in red, green or clear varnish

• 1/2 ton load capacity

• Overall width of gear (outside of tires) – 37”

• Length adjustment of gear (axle to axle) – 44-1/2” to 56-1/2”

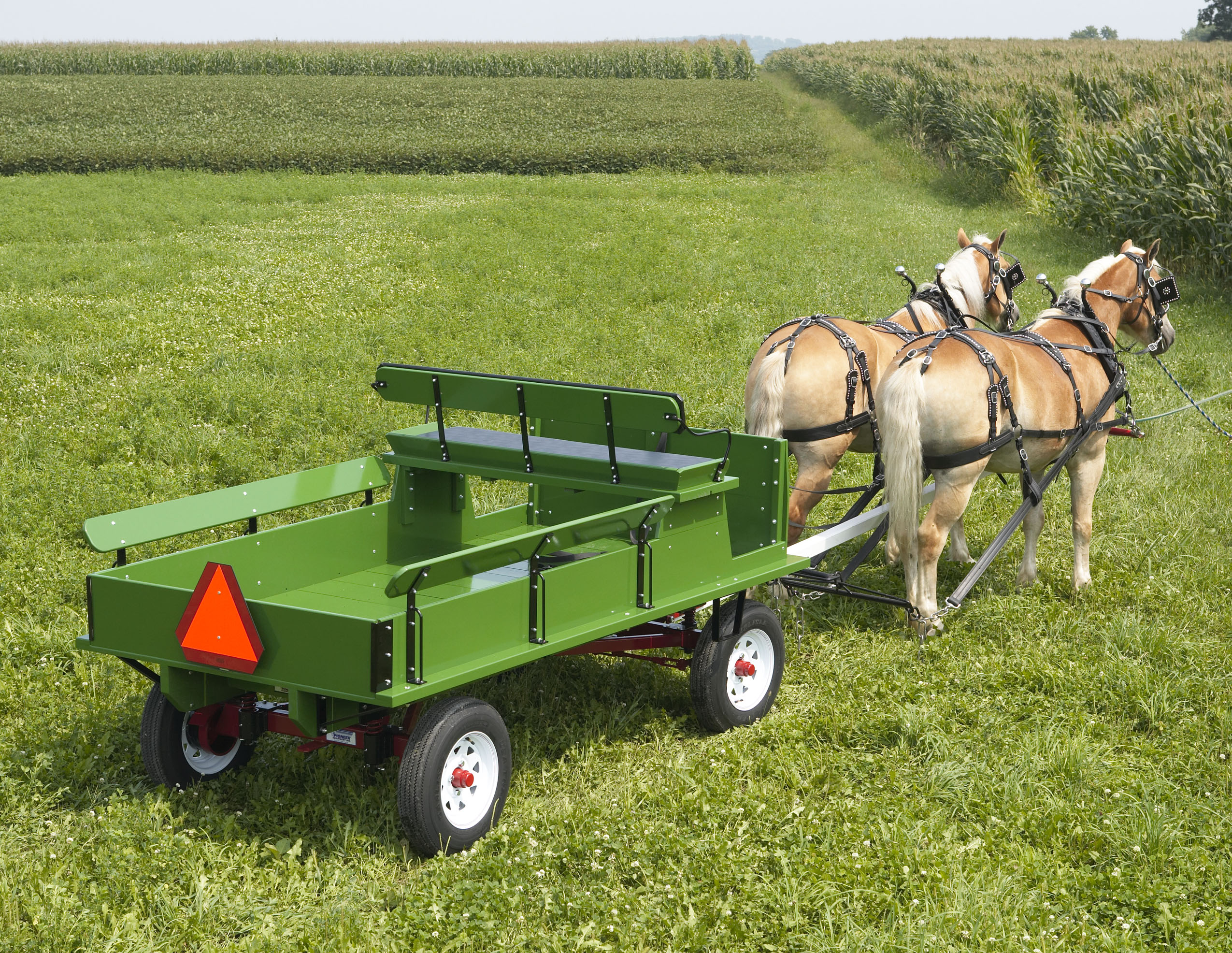

The Pioneer 1 Ton Wagon Gear

Built like the big wagons but in a more

manageable size, this wagon can be pulled

with a single horse, team of ponies or a small

tractor. A great multi-purpose wagon, hobby

farmers and small landholders will find it

useful for hauling wood, hay, grain and

produce or utilizing it for trail rides and

pleasure driving. Build your own bed or

choose one of ours. A wide variety of

options are available to help you

customize your wagon.

Hauling wood in winter gear

Features

• Bed size 56”wide x 108”long

• Available in red, green or clear varnish

• 1 ton load capacity

• Overall width of gear (outside of tires) 51”

• Length adjustment on gear (axle to axle) 66”- 96”

The Pioneer 3 Ton Wagon Gear

Three Ton Classic Bed

Pioneer’s 3-ton wagon is ideal for utility work, pleasure driving

and trail rides. Designed for light-to medium-sized horses and

mules, you can pull it with a single horse, team or tractor. Build

your own bed or choose one of ours. A wide variety of options

are available to customize your wagon.

Features

• Bed size 5’8” wide x11’ or 12’ long

• Available in red, green

or clear varnish

• 3 ton load capacity

• Overall width of gear

(outside of tires) 64”

• Length adjustment on

gear (axle to axle)

78”-110”

The Pioneer 6 Ton Wagon Gear

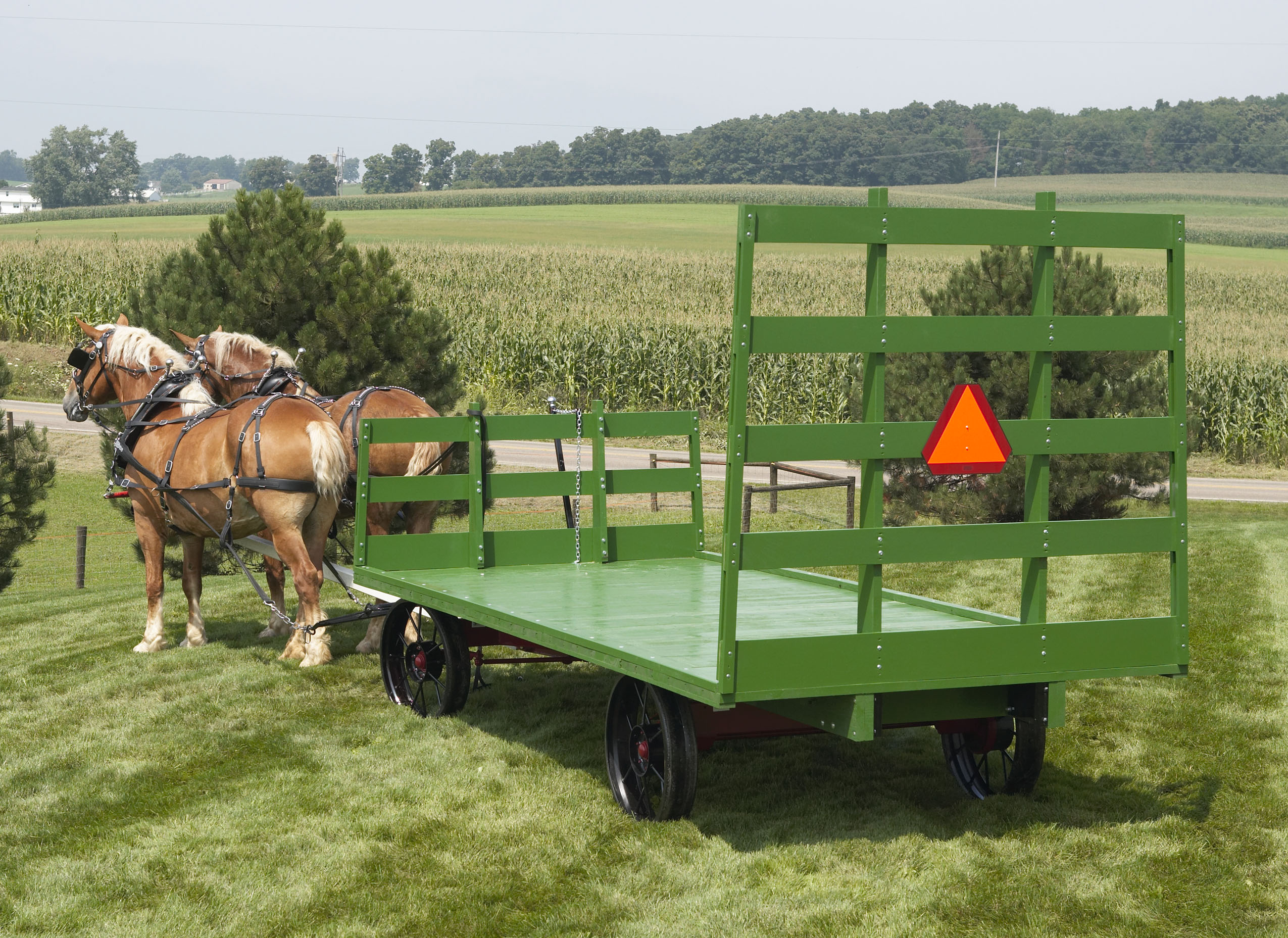

Six Ton Hayrack Bed

Our heavy duty, field ready 6-ton horse wagon gear

is built for years of hard use and extra heavy loads

Features

• Bed size 6’ 6” wide x 14’ or 16’ long

• Available in red, green or clear varnish

• 6-ton load capacity

• Choice of 3 tread widths

• Choice of 7’, 9’ or 11’ coupling pole



The Pioneer Tractor Wagon Gears

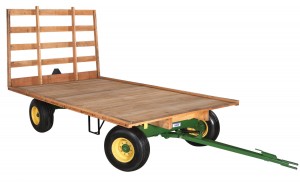

Ten Ton Custom Hay Rack Bed

These heavy duty wagon gears have heavy duty components and are designed

take the punishment in all field conditions. Choose from 6 to 15-ton capacity.

Features

• Behind the axle automotive type steering eliminates road

whip and provides smooth and straight towing

• Replaceable bushings and thrust bearings on front spindles

for less maintenance

• Grease fittings on wheel hubs and all pivot points

• 38” or 42” Beam spacing

• Choice of 7’, 9’ or 11’ coupling pole

The Pioneer Sled and Stoneboat

The Pioneer Slrd

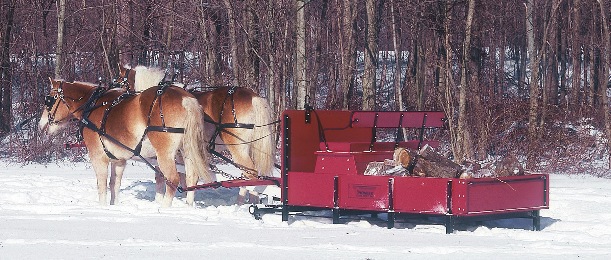

Winter work w/Sled

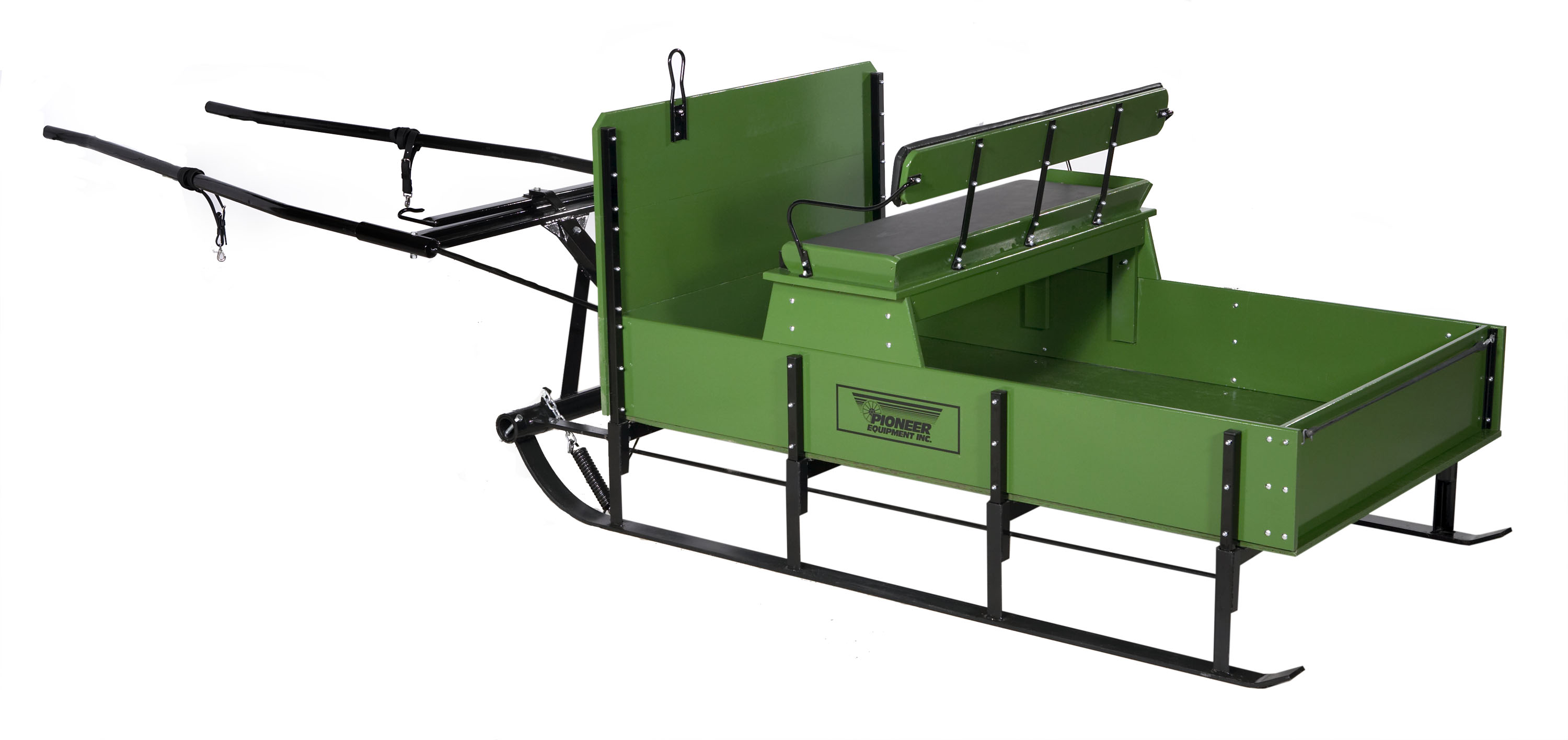

Sled

Our work sled is perfect for light hauling of firewood, hay, or farm supplies.

It also works well for training colts or exercising horses. For greater performance in

snow and on bare ground, we’ve incorporated all-steel

runners that provide better float over ruts and rough terrain.

Add one or two seats for more passengers, additional comfort

and safety.

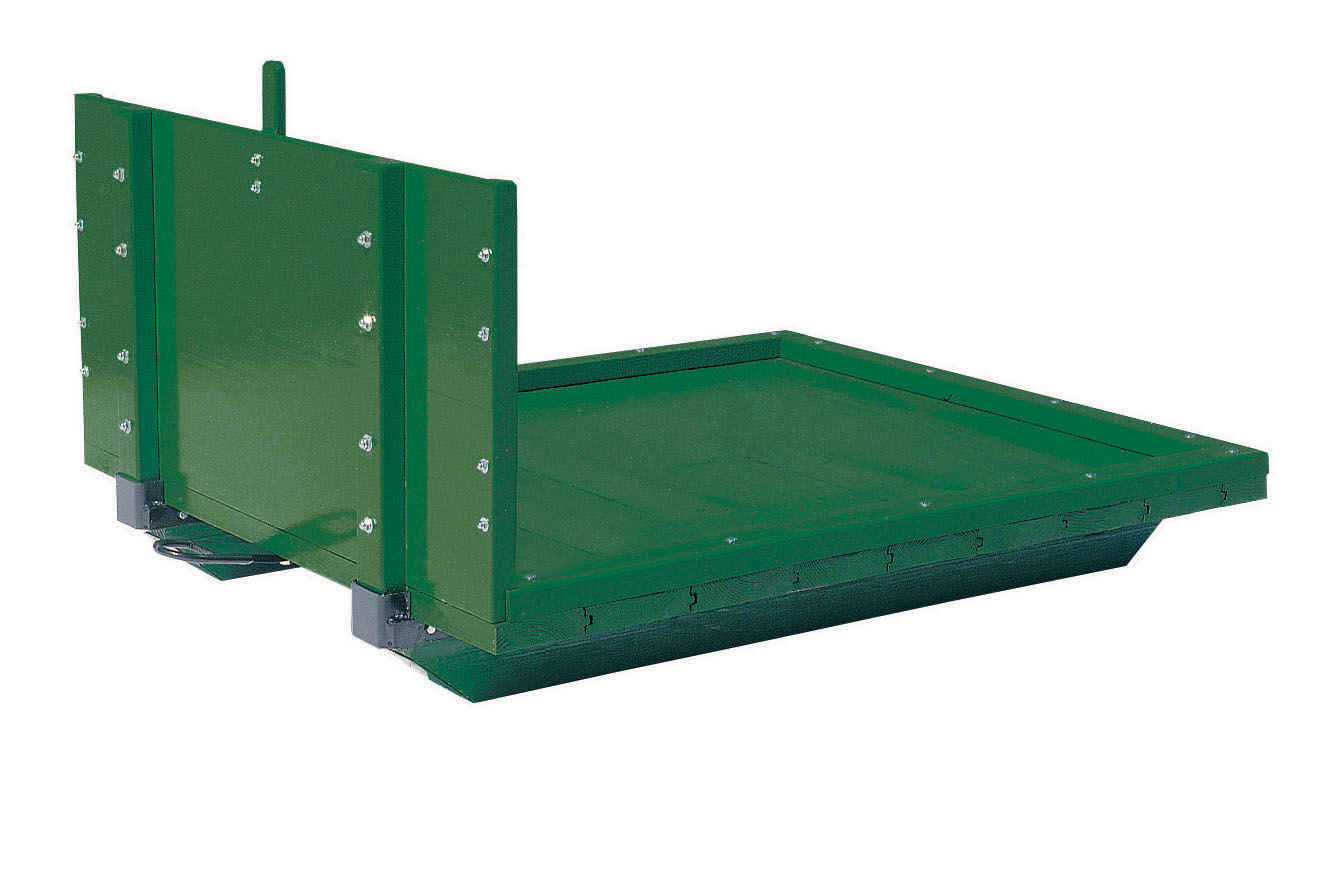

The Pioneer Stoneboat

Stoneboat

Haul light loads and exercise you’re horses with this economical

runabout sled. Measures 4’ wide x 5’ long. Features 6” high steel soled

runners and a removable 24” high dashboard. No tongue or shafts

are available
